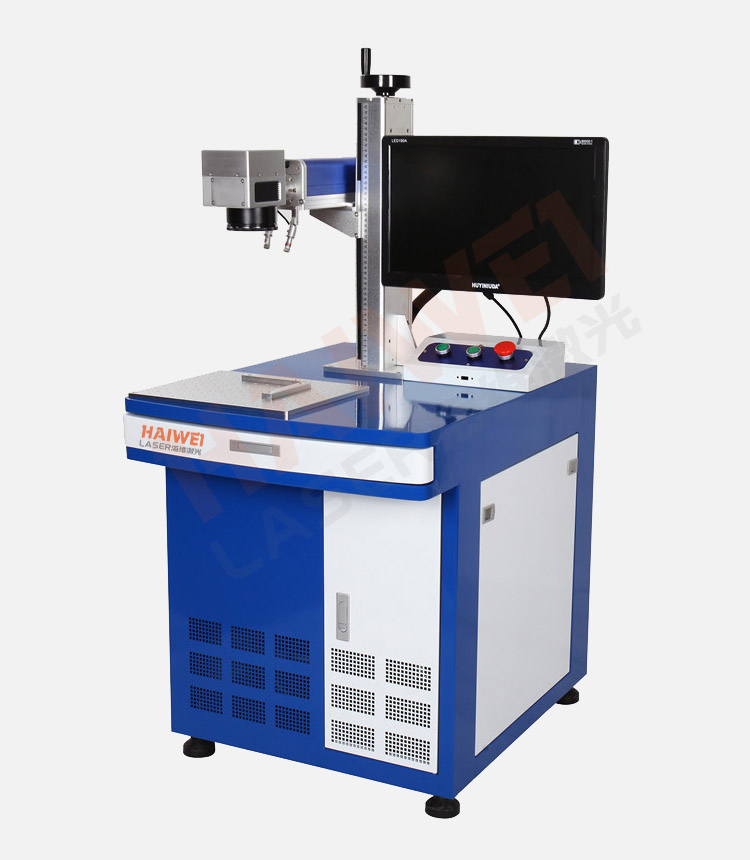

pcb laser marking machine

Application areas: automotive parts, electronic communication, hardware jewelry, chip manufacturing, light industrial products, pharmaceutical and food packaging industries, etc

  • 24-hour customer service
  • Authentic guarantee
  • Delivery commitment

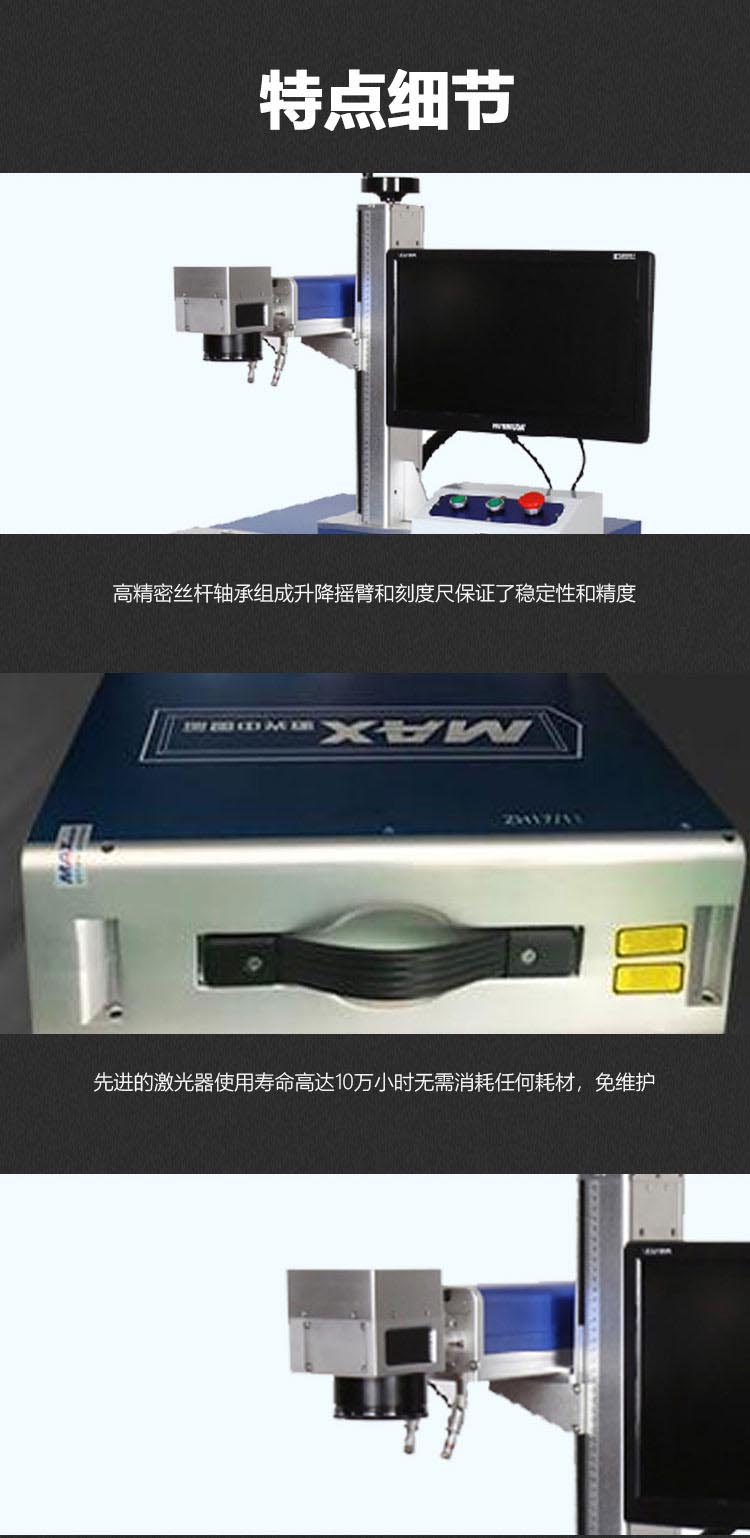

Product Introduction



1. Excellent beam quality: The divergence angle is 1/4 of that of semiconductor pumped lasers. Especially suitable for precise and fine marking.

2. Low cost of use: The entire machine consumes less than 500W of electricity, which is 1/10 of that of a lamp pumped solid-state marking machine, greatly saving energy consumption expenses.

3. Maintenance free operation: The laser does not require any maintenance, nor does it need to adjust or clean the lenses.

4. Long service life of laser: Using laser diodes as pump sources, its average working time can reach 100000 hours.

5. Fast processing speed: The processing speed is more than three times that of traditional laser marking machines.


Product parameters

Equipment typeHW-FM20
Output power20W
Laser wavelength1064nm
Beam quality M2M2: <1.1
Q-switched frequency20-100KHZ
Mark range100*100mm
Marked line velocity7m/S
Minimum line widthThe 0.02 mm
repeatability+ 0.02 mm
Cooling modeAir cooling
Overall power800W

Power requirement

AC2200V/50Hz
