Robot laser welding machine

Model Features

The laser beam of the fiber laser is extremely narrow, resulting in a small heat-affected zone and minimal workpiece deformation. Moreover, the welding speed is very fast.

The weld seams are smooth and aesthetically pleasing. After welding, no further treatment is required or only a simple process is needed.

The lifespan of the fiber laser is over 100,000 hours. It has no consumables and requires minimal maintenance, making it more convenient to operate.

The laser efficiency is ≥ 35%, which means the equipment operates more energy-efficiently and consumes less electricity.

The red light indicates the combination of CCD monitoring and observation system, allowing for clear observation of the welding position and welding effect.

Fiber laser multi-mode welding can freely switch between modulation and continuous modes according to product requirements.

It adopts a self-configured cooling system, using circulating water for cooling. No external cold water supply is required. It also has an alarm function.

The renowned six-axis robot has high precision in repetitive positioning, high accuracy in trajectory operation, and stable operation.

Robots possess great flexibility and can perform flexible, non-contact welding on difficult-to-reach precise parts. They can also adapt to various different welding methods for different complex products.

The welding efficiency is 2 to 10 times that of traditional manual welding.

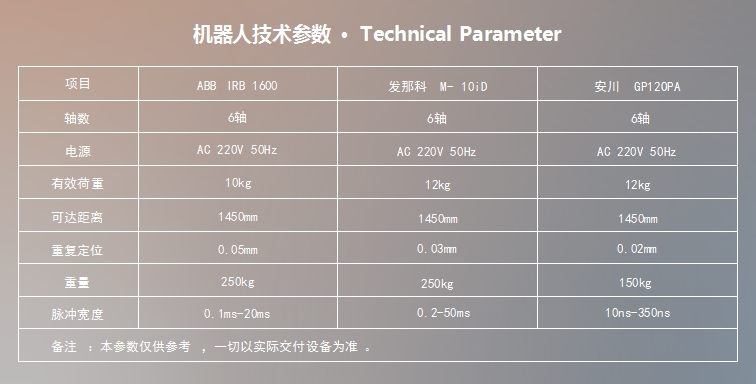

Robot brand：

International brands (such as ABB, Fanuc, KUKA, Yaskawa, etc.)

Adaptable gun heads: Straight welding head, Swing welding head, Mirror vibration welding head.

Optional equipment: Visual system positioning, wire feeding system, weld seam tracking system, changer, etc.
