Technical Support: Customizable Application Fields: 3C, electronics, mobile module, micro-motor, lithium battery, medical equipment, etc. for precision welding

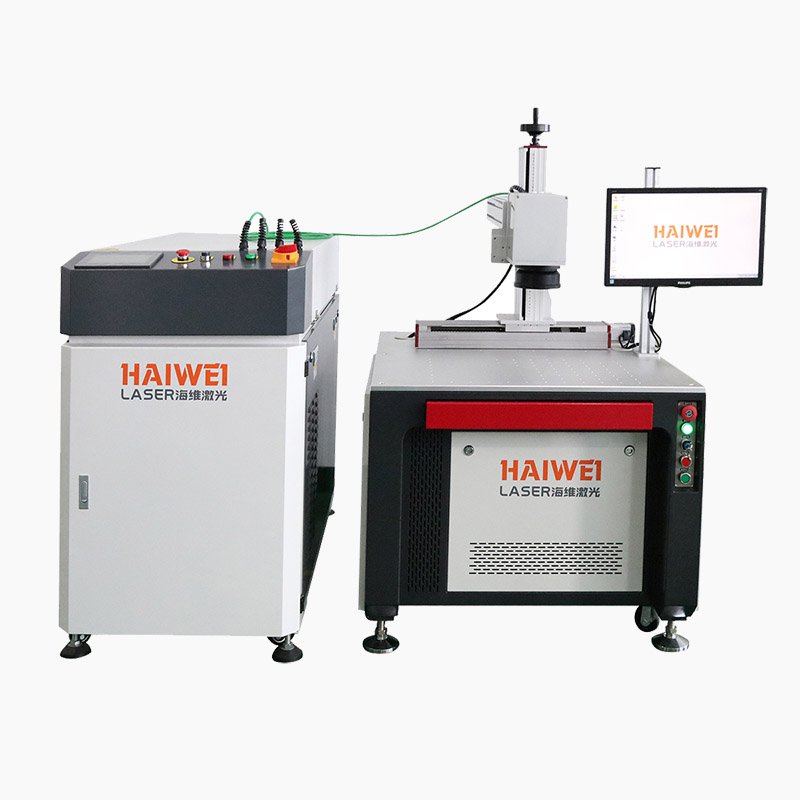

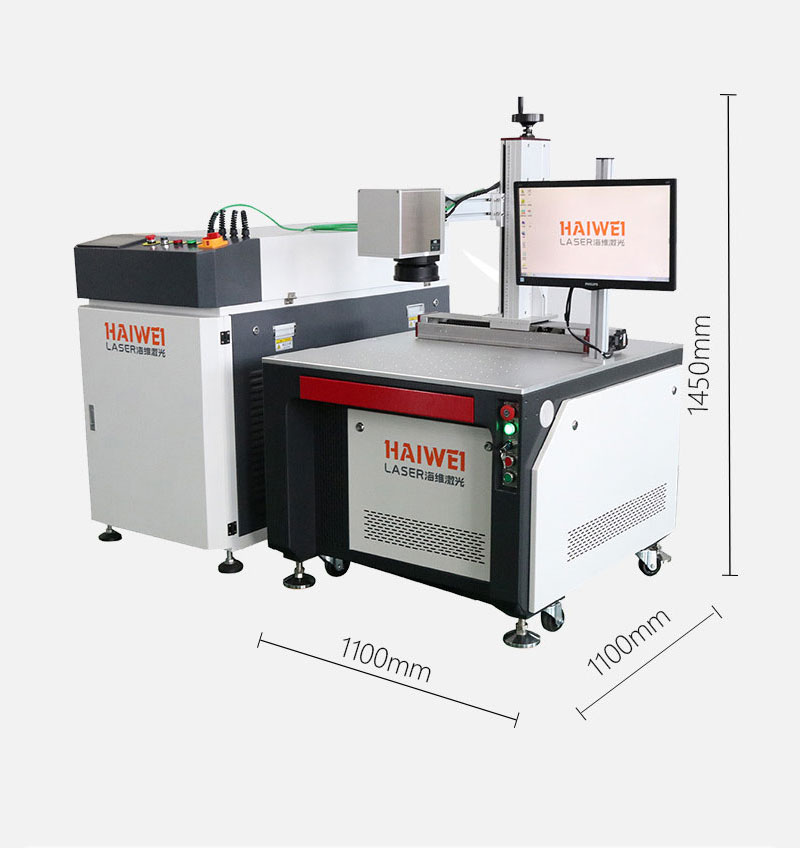

The mirror-type precision fiber laser welding machine, equipped with a high beam quality fiber laser, produces precise weld points and has a welding speed that is three times faster than the average. It is widely applicable for precision welding in 3C, electronics, mobile phone modules, micro motors, lithium batteries, medical devices, etc. The fiber laser welding is conducive to the realization of automated production lines.
| 设备型号 model | HW-LP-WS75E | HW-LP-WS150E | HW-LP-WS300E |
电力要求 Requirements of power supply | AC220V/±10%,50Hz | AC380V/±10%,50Hz | AC380V/±10%,50Hz |
| 设备功耗 eqpipment power | 3KW | 6KW | 12KW |
平均功率 Laser power | 75W | 150W | 300W |
激光波长 Wavelength | 1064nm | 1064nm | 1064nm |
峰值功率 Peak power | 5KW | 6KW | 10KW |
最大脉冲能量 Max pulse energy | 35J | 40J | 70J |
反馈方式 Feedback mode | 实时能量反馈控制 Energy feedback | ||
传输光纤 Fiber modelJapan | MITSUBISHI SI200/SI300/SI400/SI600 L=5M | ||
分光方式 Dividing laser way | 能量分光/时间分光(标配1路出光，最多4路出光) Energy dividing/time dividing(standard 1 road light) | ||
工作范围 Work area | 100*100mm (可定制) | ||
波形设置 Waveform setting | 任意拐点波形设置,1-20拐点 Arbitrary Waveform set,1-20 point | ||
参数储存 Parameter storage | 8G空间，每个文件可调用32组参数 8G SD memory, call 32 sets of parameters | ||
脉冲宽度 pulse width | 0.1ms-20ms | ||
脉冲频率 pulse frequency | 1HZ-100HZ | ||
I/O接口 input/output | Input/Output I/O RS232 | ||
瞄准指示方式 Localization way | 红光/(选配CCD) Red diode indicator (option ccd) | ||
冷却方式 Cooling way | 水冷 Water chiller | ||
环境要求 Environmental requirements | 温度：13℃-28℃ 湿度：5%-75% Temperature:13℃-28℃ humidity:5%-75% | ||
