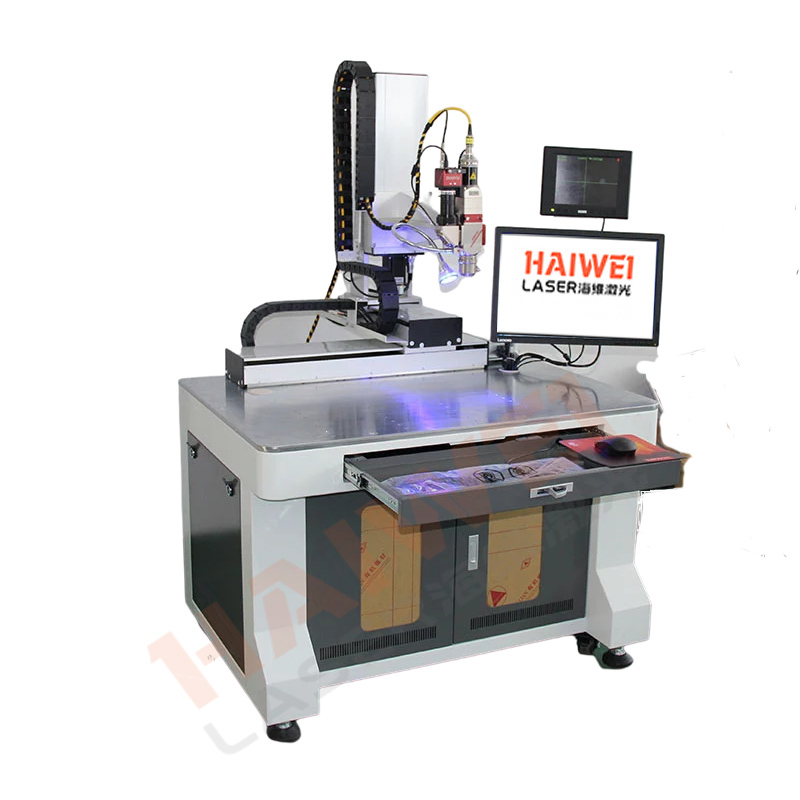

Multi-channel energy splitting laser welding machine-Laser Welding Machine-Haiwei Laser

Multiple laser output at the same time, up to 4 can be output at the same time, greatly improving the welding efficiency.


model	HW-LP-WT75E	HW-LP-WT150E	HW-LP-WT300E	HW-LP-WT400E	HW-LP-WT600E
Requirements of power supply	AC220V/±10%,50Hz	AC380V/±10%,50Hz	AC380V/±10%,50Hz	AC380V/±10%,50Hz	AC380V/±10%,50Hz
Equipment power	3KW	6KW	12KW	14KW	18KW
Wavelength	1064nm	1064nm	1064nm	1064nm	1064nm
Peak power	5KW	6KW	10KW	10kw	10KW
Max pulse energy	35J	40J	70J	100J	100J
Feedback mode	Energy feedback
fiber model	Japan MITSUBISHI SI200/SI300/SI400/SI600 L=5M
Dividing laser way	Energy dividing/time dividing(standard 1 road light)
Welding work table	Optional with welding, 4 axis automatic welding,
Work area	X-300 y-200 z-300（Customizable)
Waveform setting	Arbitrary Waveform set,1-20 point
Parameter storage	8G SD memory, call 32 sets of parameters
pulse width	0.1ms-20ms
Localization way	Red diode indicator (option ccd)
Welding depth	1.0mm(sus304)	2.0mm(sus304)	3mm(sus304)	3mm(sus304)	3mm(sus304)
Cooling way	Water chiller
Environmental requirements	Temperature:13℃-28℃ humidity:5%-75%
外形尺寸L×H×W Equipment size	1100×1100×500(mm)	1100×1000×650(mm)	1300×1130×660(mm)	1300×1130×660(mm)	1300×1350×660(mm)

Multi-channel energy splitting laser welding machine
