Model Profile

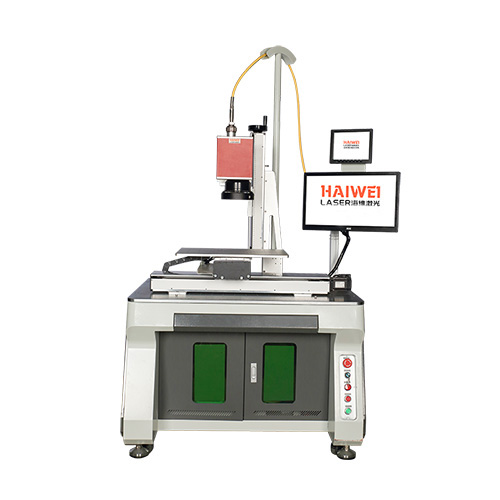

The mirror-type laser welding machine adopts an advanced high-speed digital mirror system, combined with pulse/continuous quasi-continuous/nanosecond laser, professional laser control software system, to achieve precise laser spot welding or quasi-continuous welding for products. The welding heat impact is minimal, and the product deformation is small. This greatly improves product quality and processing speed.
Model Features
By configuring high-performance lasers, it is possible to achieve different peak powers of pulses for welding of various metal materials.
Using high-speed digital mirrors, the positioning accuracy is high and the response speed is fast.
An extended shaft can be optionally equipped to accommodate a wider range of laser welding.
Equipped with CCD visual positioning, it enables automatic positioning and meets the requirements of automated welding.
It enables convenient and automated connection with external loading and unloading operations.
设备型号 model | HW-LP-WS75E | HW-LP-WS150E | HW-LP-WS300E |
电力要求 Requirements of power supply | AC220V/±10%,50Hz | AC380V/±10%,50Hz | AC380V/±10%,50Hz |
设备功耗 eqpipment power | 3KW | 6KW | 12KW |
平均功率 Laser power | 75W | 150W | 300W |
激光波长 Wavelength | 1064nm | 1064nm | 1064nm |
峰值功率 Peak power | 5KW | 6KW | 10KW |
最大脉冲能量 Max pulse energy | 35J | 40J | 70J |
反馈方式 Feedback mode | 实时能量反馈控制 Energy feedback | ||
传输光纤 Fiber model | Japan MITSUBISHI SI200/SI300/SI400/SI600 L=5M | ||
分光方式 Dividing laser way | 能量分光/时间分光(标配1路出光，最多4路出光) Energy dividing/time dividing(standard 1 road light) | ||
工作范围 Work area | 100*100mm (可定制) | ||
波形设置 Waveform setting | 任意拐点波形设置,1-20拐点 Arbitrary Waveform set,1-20 point | ||
参数储存 Parameter storage | 8G空间，每个文件可调用32组参数 8G SD memory, call 32 sets of parameters | ||
脉冲宽度 pulse width | 0.1ms-20ms | ||
脉冲频率 pulse frequency | 1HZ-100HZ | ||
I/O接口 input/output | Input/Output I/O RS232 | ||
瞄准指示方式 Localization way | 红光/(选配CCD) Red diode indicator (option ccd) | ||
冷却方式 Cooling way | 水冷 Water chiller | ||
环境要求 Environmental requirements | 温度：13℃-28℃ 湿度：5%-75% Temperature:13℃-28℃ humidity:5%-75% | ||
外形尺寸L×H×W(mm) Equipment size | 1100×1000×500 | 1100×1000×650 | 1300×1130×660 |
